Truck Tire Pressure Chart: Find Correct PSI by Axle Load

What Is a Truck Tire Pressure Chart?

Sai Gon, 8 Mar, 2026. A truck tire pressure chart is a technical guide that shows the relationship between tire load and the minimum inflation pressure needed to safely support that load. It helps drivers and fleet operators determine the correct PSI based on tire size, axle load, and operating conditions.

By referencing this chart, operators can set accurate pressure for common sizes like 11R22.5, 295/75R22.5, 12R22.5 and 315/80R22.5. Proper inflation improves stability, reduces fuel use, ensures even tread wear, and helps prevent overheating or premature tire failure. In short, it is a critical tool for safe, efficient heavy-duty truck operation.

Why Proper Commercial Truck Tire Pressure Matters for Safety & ROI

Maintaining correct truck tire pressure is essential for safety and operating efficiency. Proper inflation improves road contact, braking stability, and vehicle control while reducing heat buildup — one of the leading causes of blowouts in heavy-duty trucking. Correct tire pressure also helps drivers maintain better stability and confidence on long-distance routes.

Proper inflation significantly reduces operating costs as well. Lower rolling resistance improves fuel efficiency, and according to the United States Environmental Protection Agency, a 10 PSI pressure drop can reduce fuel economy by 0.5–1%. Tire lifespan is also heavily affected: operating tires 20% under-inflated may shorten service life by up to 30%.

These benefits lead to lower fuel expenses, fewer tire replacements, and reduced maintenance costs. A truck tire pressure chart helps fleets match PSI to actual load conditions, improving both tire performance and long-term fleet efficiency.

3 Dangerous Truck Tire Inflation Mistakes to Avoid

Even experienced drivers sometimes set truck tire pressure incorrectly. These mistakes usually come from misunderstanding tire markings, relying on outdated habits, or misinterpreting vehicle weight distribution. Understanding the most common errors can help drivers maintain proper inflation, improve tire life, and reduce the risk of tire failure on the road.

Mistake 1: Blindly Using the Max PSI Printed on the Sidewall

The PSI printed on a truck tire sidewall indicates the maximum pressure the tire can safely handle at maximum load — not the recommended daily operating pressure. It represents the structural limit of the tire casing under full-load conditions.

Many drivers mistakenly use this number as the standard running pressure. In reality, proper inflation should be determined using the manufacturer’s Load & Inflation Table or a truck tire pressure chart based on actual axle load. Using sidewall PSI as operating pressure can cause overinflation, reduced traction, uneven wear, and a higher risk of blowouts at highway speeds.

Mistake 2: Relying on “Thumb Pressure” or Old Driver Habits

Another common mistake is relying only on traditional rules or advice from experienced drivers when setting truck tire pressure. While experience remains valuable, modern truck tires use advanced rubber compounds, casing designs, and updated load ratings that differ significantly from older generations.

As tire technology evolves, inflation practices that worked decades ago may no longer suit today’s tires. The correct approach is to follow the manufacturer’s Load & Inflation Table, which determines the proper PSI based on actual axle load and tire specifications rather than outdated assumptions or sidewall-based rules.

Mistake 3: Confusing Gross Vehicle Weight (GVW) with Axle Load

Truck tire pressure should always be based on axle load rather than total vehicle weight. Each axle carries a different portion of the load, so inflation pressure must match the weight supported by that specific axle.

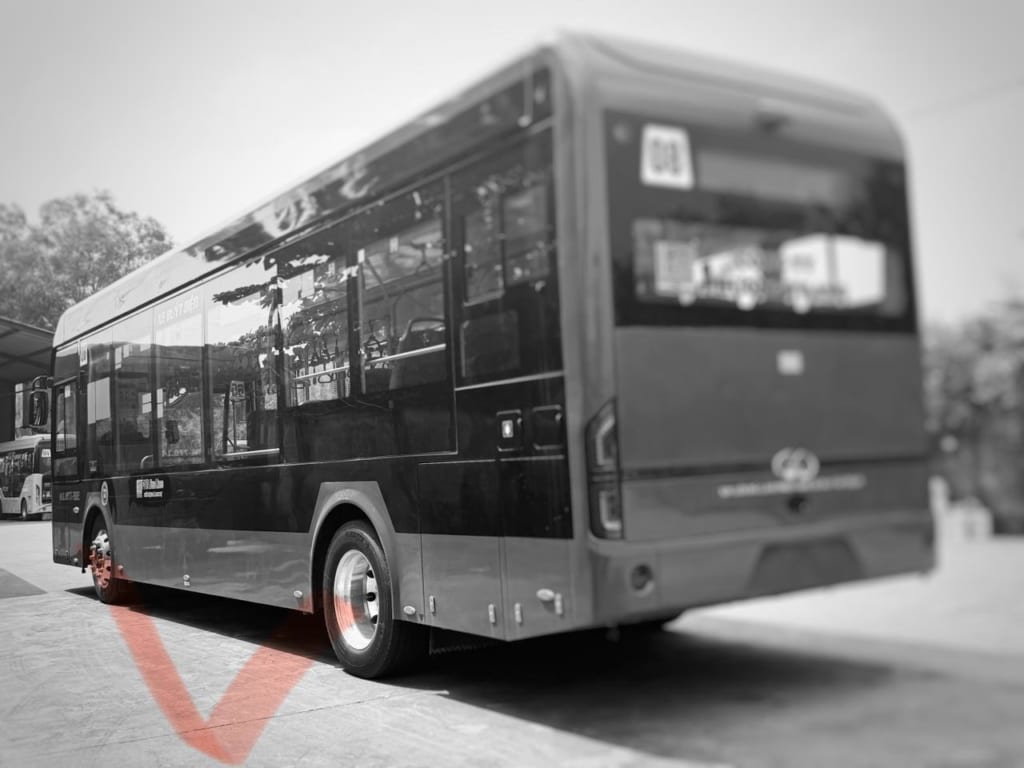

For example, cab-over trucks commonly used in Europe and Japan place the cab and engine directly above the steer axle, creating higher front-axle loads. As a result, steer tires often require higher inflation pressure.

In contrast, conventional American trucks position the engine ahead of the cab, shifting more weight toward the drive axles once a trailer is attached. Because of these design differences, using the same PSI across different truck types can easily cause underinflation or overinflation.

To maintain proper truck tire pressure, fleets should measure actual axle loads and follow the manufacturer’s Load & Inflation Table or truck tire pressure chart to determine the correct PSI for each axle.

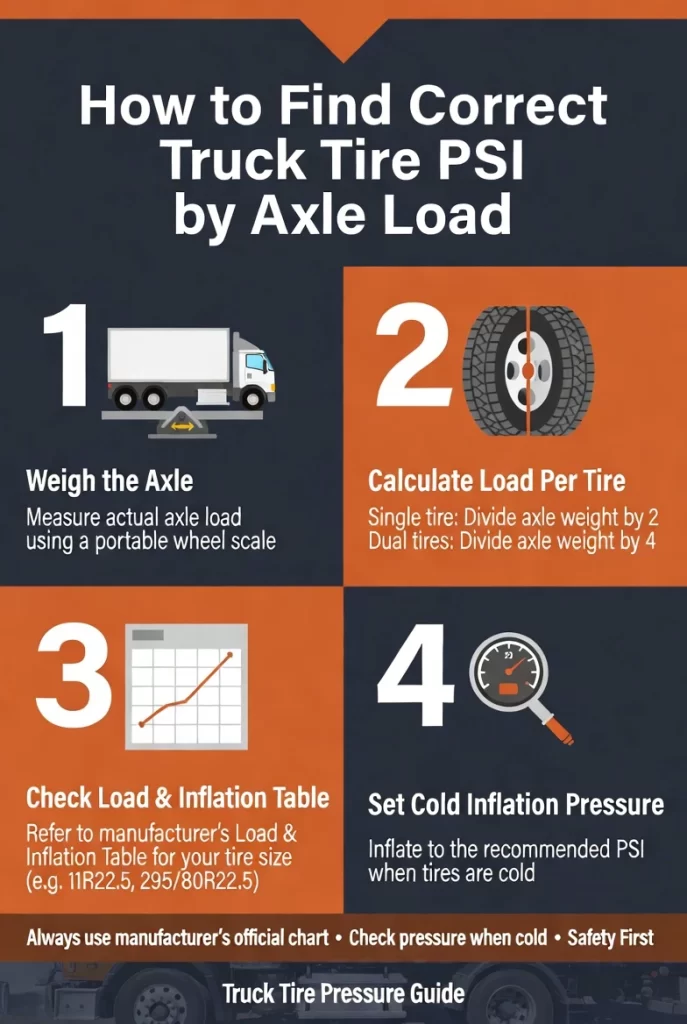

Step-by-Step: How to Find Your Target Truck Tire PSI

Correct truck tire pressure is determined by measuring axle load, calculating per-tire load, and matching the result to the manufacturer’s Load & Inflation Table.

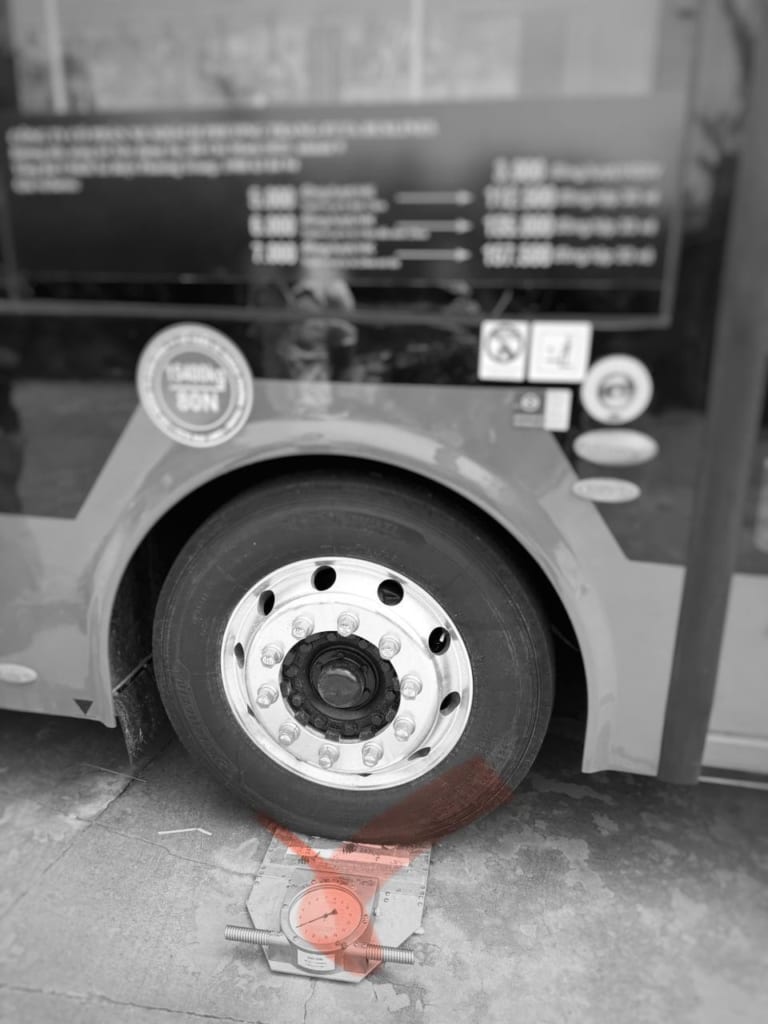

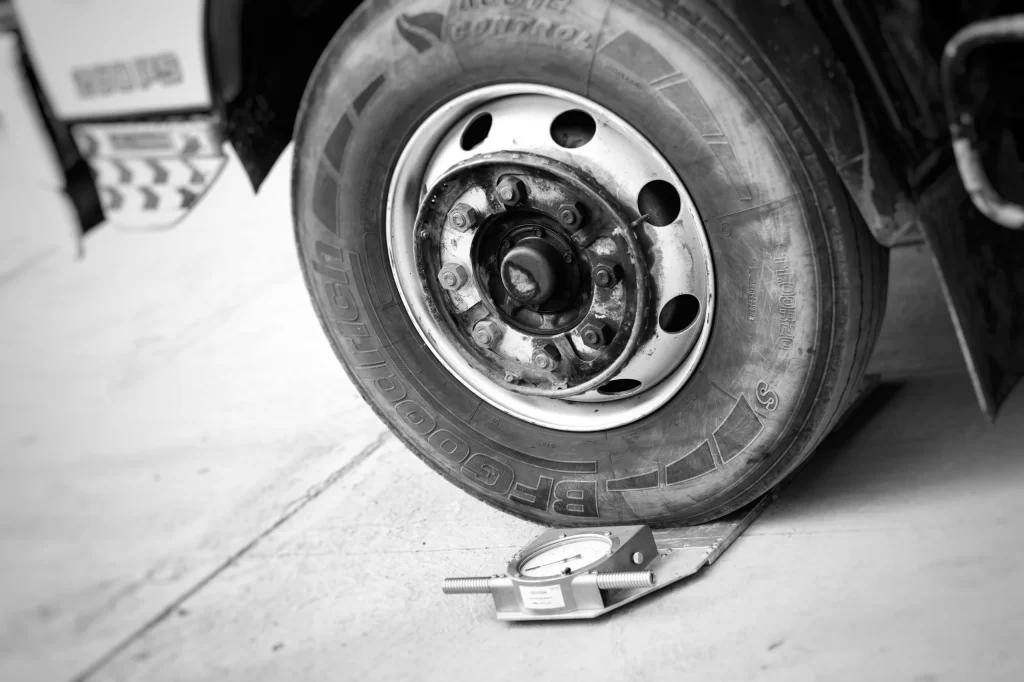

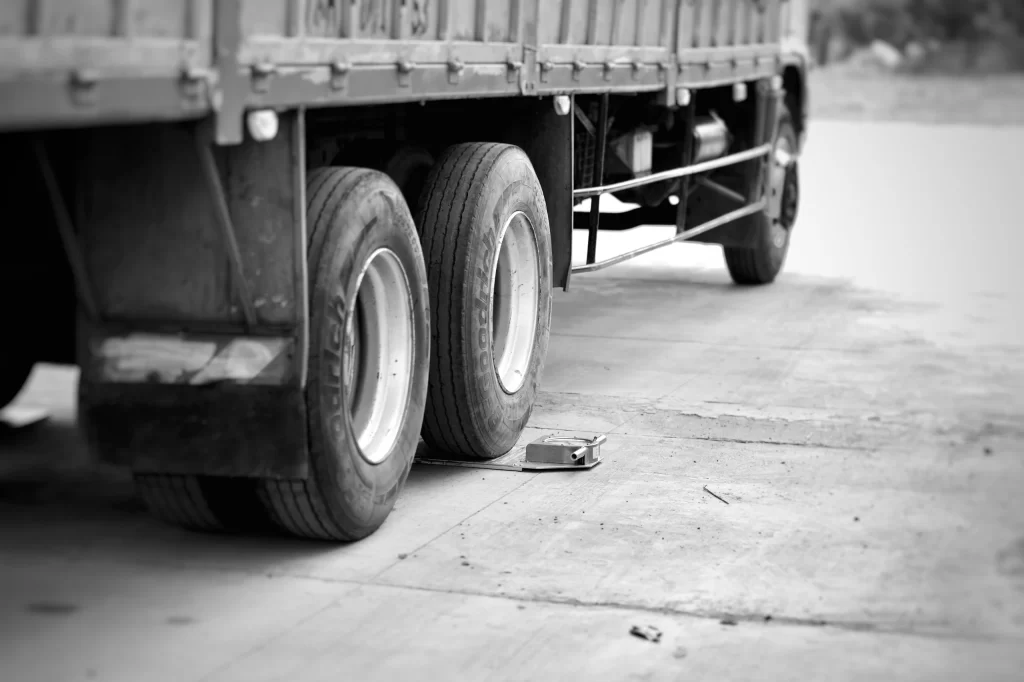

The process begins by weighing each axle individually using an axle scale. This is the only reliable way to understand how weight is distributed across the steer, drive, and trailer axles, since total vehicle weight alone does not reflect actual load distribution.

Cargo type and loading position can significantly affect axle loads. Dense cargo creates concentrated weight, while bulky freight distributes weight more evenly. Moving cargo forward or backward can also change the required tire pressure.

For this reason, fleets should weigh trucks under maximum expected payload conditions and set tire pressure according to the highest axle load the vehicle is expected to support.

Step 1: Converting Axle Weight to Individual Tire Load

After weighing the truck, the next step is converting axle weight into the load carried by each tire. Tire pressure is based on individual tire load, not total axle weight. For a single-tire axle, divide axle weight by two; for a dual-tire axle, divide by four.

Once the per-tire load is known, fleets should consult the manufacturer’s Load & Inflation Table for the exact tire model and size, such as 11R22.5 or 295/80R22.5. This chart specifies the minimum cold inflation pressure required for a given load.

Using the correct per-tire load ensures inflation pressure matches the manufacturer’s engineering standards, improving load support, stability, tread wear, and tire life — especially in heavy-duty or long-haul operations.

Step 2: How to Read a Standard Tire Load & Inflation Table

A truck tire pressure chart lists tire sizes alongside the maximum load each tire can support at specific inflation pressures. Drivers simply locate the tire size and match the per-tire load to the corresponding PSI value.

Truck Tire Pressure Chart – 11R22.5 (Continental Technical Data)

The following table shows the certified relationship between cold inflation pressure and maximum load capacity for 11 R 22.5 commercial truck tires, based on official manufacturer technical specifications.

Note: Values shown are example load and inflation references for commercial truck tires. Actual load capacity and required tire pressure may vary depending on tire size, load index, and manufacturer specifications.

Truck Tire Pressure Chart – 12R22.5 (Continental Technical Data)

Note: Load and inflation values shown are reference data for commercial truck tires. Actual tire pressure requirements may vary depending on tire brand, load index, speed rating, and operating conditions.

Truck Tire Pressure Chart – 295/80R22.5 (Continental Technical Data)

The following table shows the certified relationship between cold inflation pressure and maximum load capacity for 295/80R22.5 commercial truck tires based on official manufacturer technical specifications.

Note: Load and inflation values shown are reference data for 295/80R22.5 commercial truck tires. Actual tire pressure requirements may vary depending on tire brand, load index, speed rating, and operating conditions.

How to interpret the chart:

• Single = one tire per side of the axle
• Dual = two tires per side of the axle
• PSI = minimum cold inflation pressure required for the specified load

For example, an 11 R 22.5 tire operating in a single configuration and carrying a measured load of 5,390 kg requires a minimum cold inflation pressure of approximately 102 PSI (7.0 bar) according to the Load & Inflation Table.

Practical Example: A Sample Truck Tire Pressure Chart

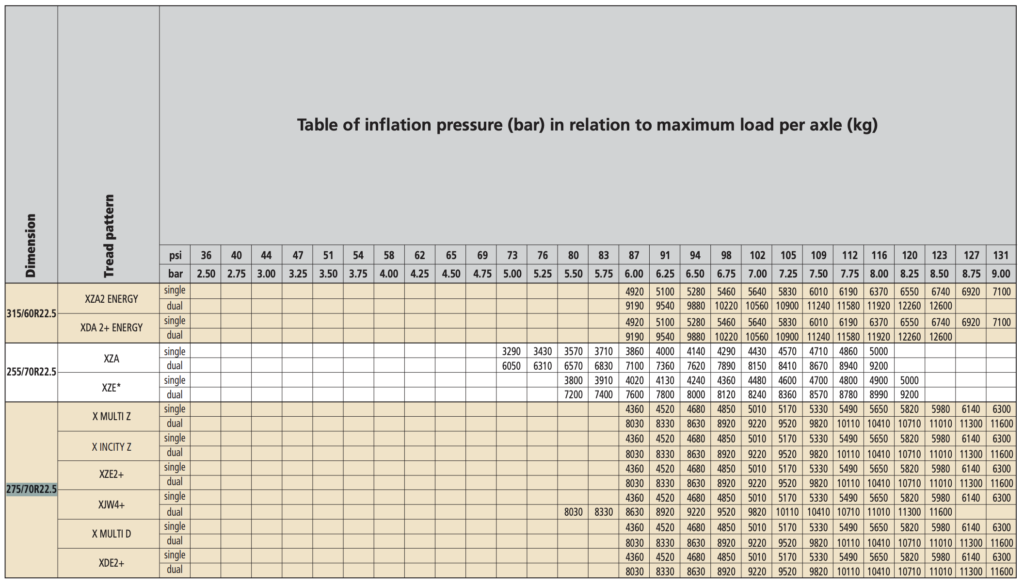

Example of a manufacturer Load & Inflation Table

The table above illustrates how tire manufacturers define the relationship between inflation pressure and load capacity. Each column represents a specific inflation pressure level, while the values in the table indicate the maximum load the tire can carry at that pressure. Separate rows are provided for single and dual tire configurations because load distribution differs between these setups.

By locating the calculated per-tire load and selecting the corresponding pressure column, drivers can determine the minimum cold inflation pressure required for safe operation.

Crucial Safety Factors: Understanding Speed, Load, and Pressure Relationships

When using a tire manufacturer’s Load & Inflation Table, it is essential to interpret the information correctly to avoid setting the wrong pressure. Below are the key points every driver and fleet operator should keep in mind:

1. PSI shown is the minimum cold inflation pressure
   The listed PSI is the minimum pressure required when the tire is cold to safely support the specified load. Inflation below this level can cause excessive heat buildup and reduced load capacity.
2. If your exact load is not listed, select the next higher PSI
   Load values are grouped in increments. When the calculated per-tire load falls between two values, always choose the higher pressure to maintain a safety margin.
3. Do not cross-use tables between different brands
   Different manufacturers use different casing constructions and load ratings. A PSI value from one brand may not apply to another tire model, even in the same size.
4. Inflation values assume proper load distribution
   Load tables assume weight is evenly distributed across the axle. Uneven cargo placement can overload one side of the vehicle even when total axle weight appears acceptable.
5. Confirm values with technical support when necessary
   If the table includes multiple application conditions or operating limits, fleets should verify the correct pressure with the tire manufacturer or technical representative.

What Happens If Your Axle Load Exceeds the Chart Limits?

If the actual axle or per-tire load exceeds the maximum value in the Load & Inflation Table, the tire is operating beyond its certified capacity. Increasing inflation pressure cannot safely compensate for an overload.

At this point, the tire cannot support the weight even at maximum allowable PSI. The only safe solutions are reducing vehicle load, redistributing cargo to balance axle weights, or upgrading to a tire with a higher load index.

Overloaded tires generate excessive heat, accelerate casing fatigue, and increase the risk of rapid air loss or structural failure. When load exceeds the manufacturer’s limit, the correct solution is to reduce the load or use a higher-capacity tire — not exceed the specified pressure range.

Example: Understanding the Speed / Load / Pressure Relationship

For example, according to the Michelin Speed / Load / Pressure Combination chart, a truck tire with a speed symbol L (120 km/h) may carry up to 12% more load when operating at 60 km/h, provided the inflation pressure is increased by approximately 8%.

This means additional load is only permitted when the vehicle operates below its maximum speed rating and the tire pressure is increased to control heat buildup.

As vehicle speed approaches the tire’s rated limit, both the allowable load increase and pressure adjustment gradually return to zero. This demonstrates the direct relationship between load, inflation pressure, and operating speed, which must be balanced to maintain tire safety and durability.

Summary: Key Takeaways for Correct Truck Tire Maintenance

• Weigh each axle to determine the actual load distribution across the vehicle
• Convert axle weight into per-tire load based on single or dual tire configuration
• Use the tire manufacturer’s Load & Inflation Table to find the required PSI
• Adjust tire pressure according to the recommended cold inflation value
• Regularly inspect and monitor tire pressure to maintain safety, fuel efficiency, and tire lifespan

If there is any uncertainty about load calculations or inflation settings, fleets should consult an authorized dealer or the tire manufacturer’s technical representative for accurate recommendations.

Download the printable Truck Tire Pressure Chart PDF for workshop, fleet, and driver reference.

Important Notice: The charts and downloadable PDF files provided in this article are for reference purposes only. Always consult and follow the latest official Load & Inflation Table provided by the specific tire manufacturer for the exact tires installed on your vehicle. Certified inflation values may vary depending on the tire model, manufacturing year, and specific operating conditions.

Frequently Asked Questions (FAQs) About Truck Tire Pressure Charts

Technical References

Recommended truck tire pressure values should always be verified using the official load and inflation tables provided by tire manufacturers such as Michelin, Bridgestone, Goodyear, or Continental. These technical documents provide the certified relationship between tire load and minimum cold inflation pressure for each tire model.

Nhat Diem Honq
